[Example 4] Flow in a real river（single cross section)

Select Solver

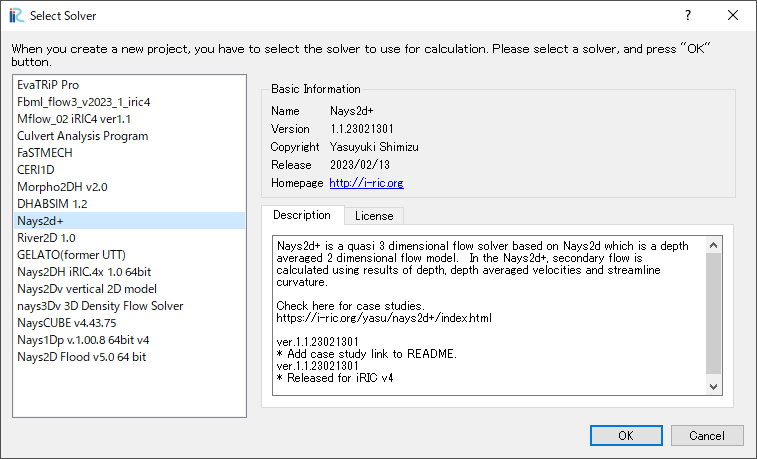

In the [Select Solver] window, Figure 84 , select [Nays2d+] and click [OK].

../_images/koshi_11.png — Figure 84 : Select Solver

Importing River Survey Data

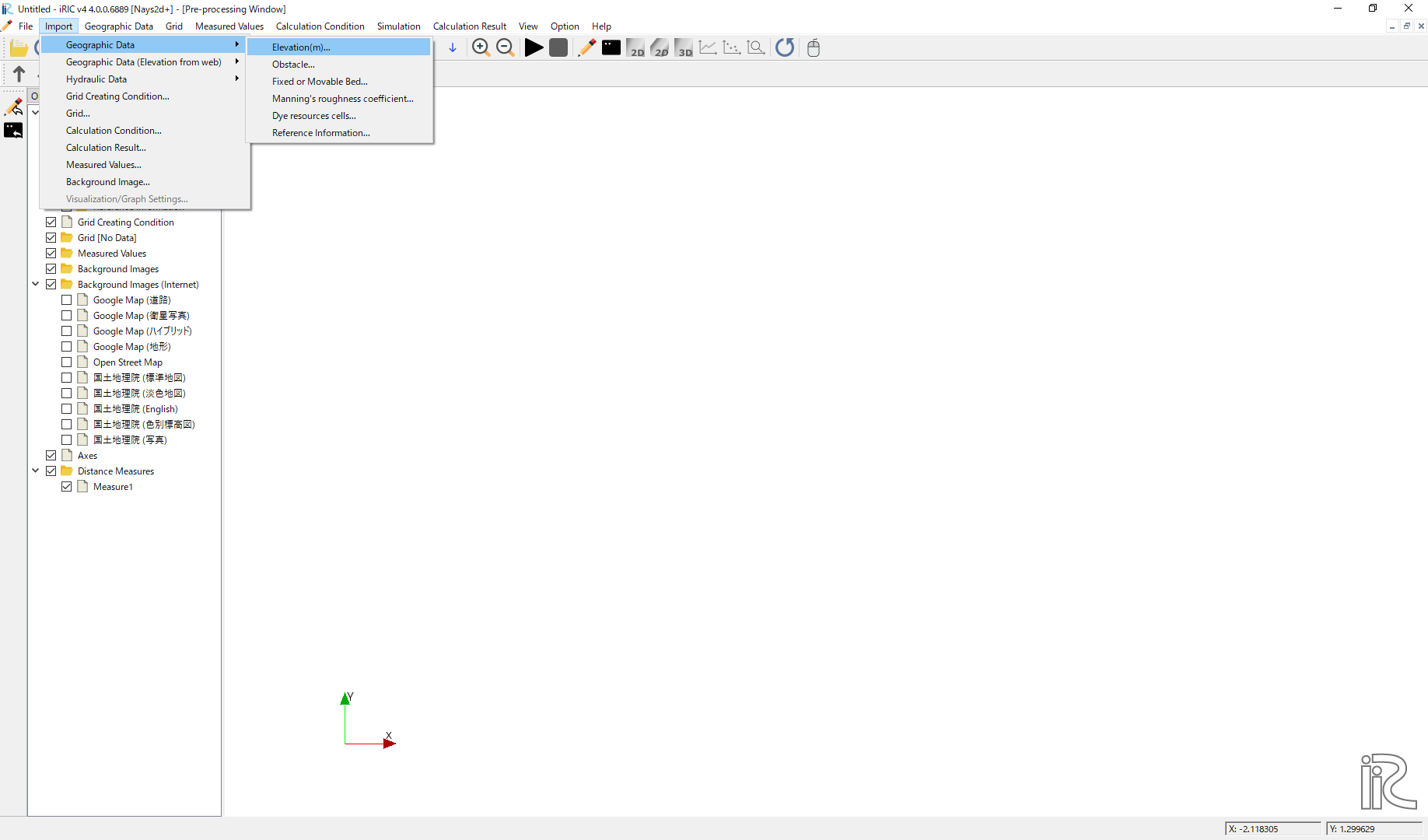

In the window, Figure 85, select [Import], [Geographic Data], [Elevation(m)]

../_images/koshi_21.png — Figure 85 : Import river geographic data

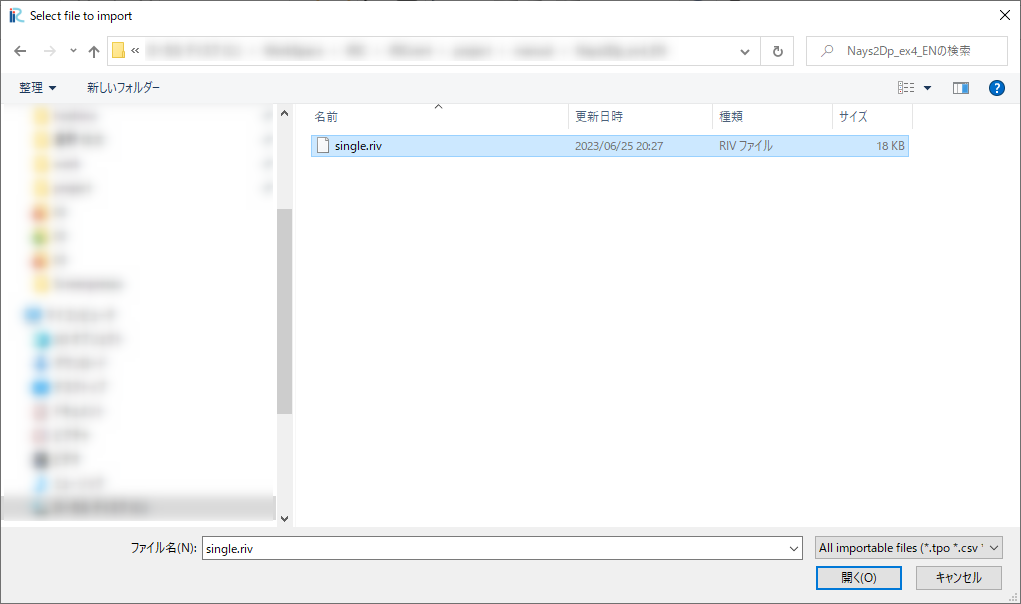

Chose [single.riv] in the window, Figure 86 and open. The cross sectional survey data “single.riv” can be downloaded from， https://i-ric.org/yasu/fw/rivfiles/single.riv

../_images/koshi_31.png — Figure 86 : Select File

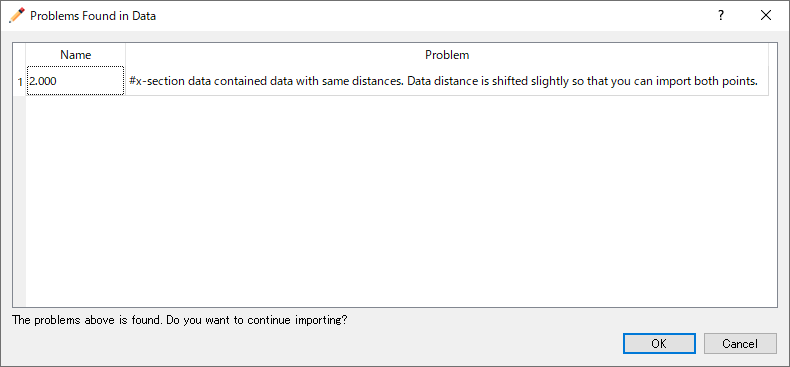

A message window may appear telling “Problems Fund i Data” as Figure 87 ,but just click [OK]

../_images/koshi_41.png — Figure 87 : Prblem Fund

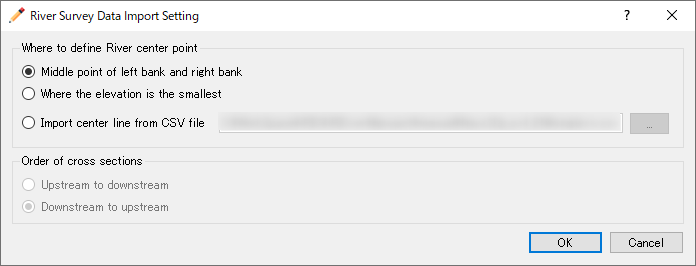

Select [Middle point of left and right bank] in the [River Survey Data Import Setting] window as Figure 88 , and click [OK]

../_images/koshi_51.png — Figure 88 : River Survay Data Import Setting

Figure 89 riv file import complete.

../_images/koshi_6.png — Figure 89 : Import Complete

Grid Generation Conditions

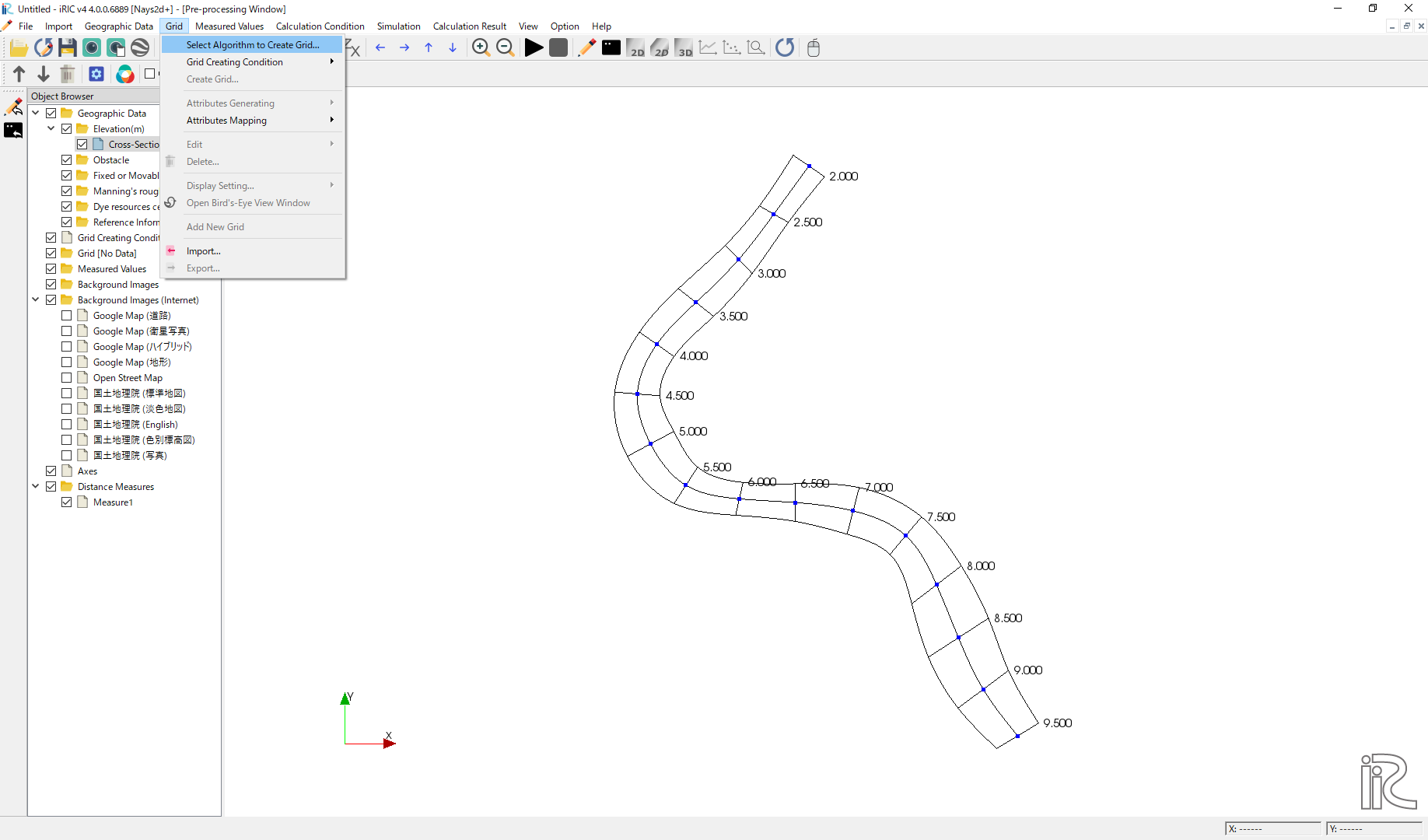

From the main menu, select [Grid] and [Select Algorithm to Create Grid] as, Figure 90

../_images/koshi_7.png — Figure 90 : Select Algorithm to Create Grid

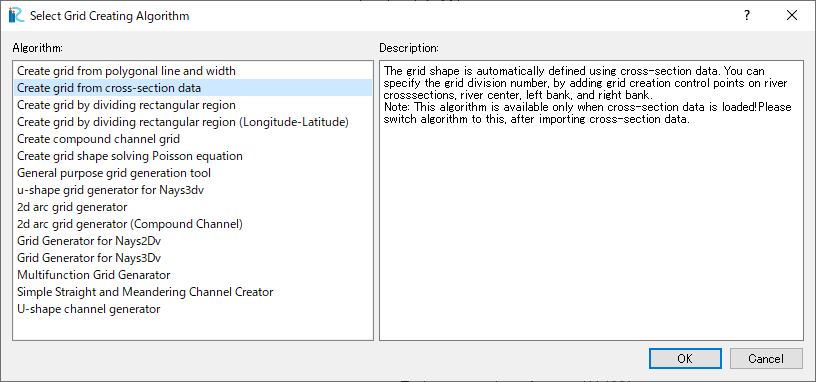

Select [Create grid from river survey data] from the window, Figure 91 , and click [OK].

../_images/koshi_8.png — Figure 91 : Create grid from river survey data

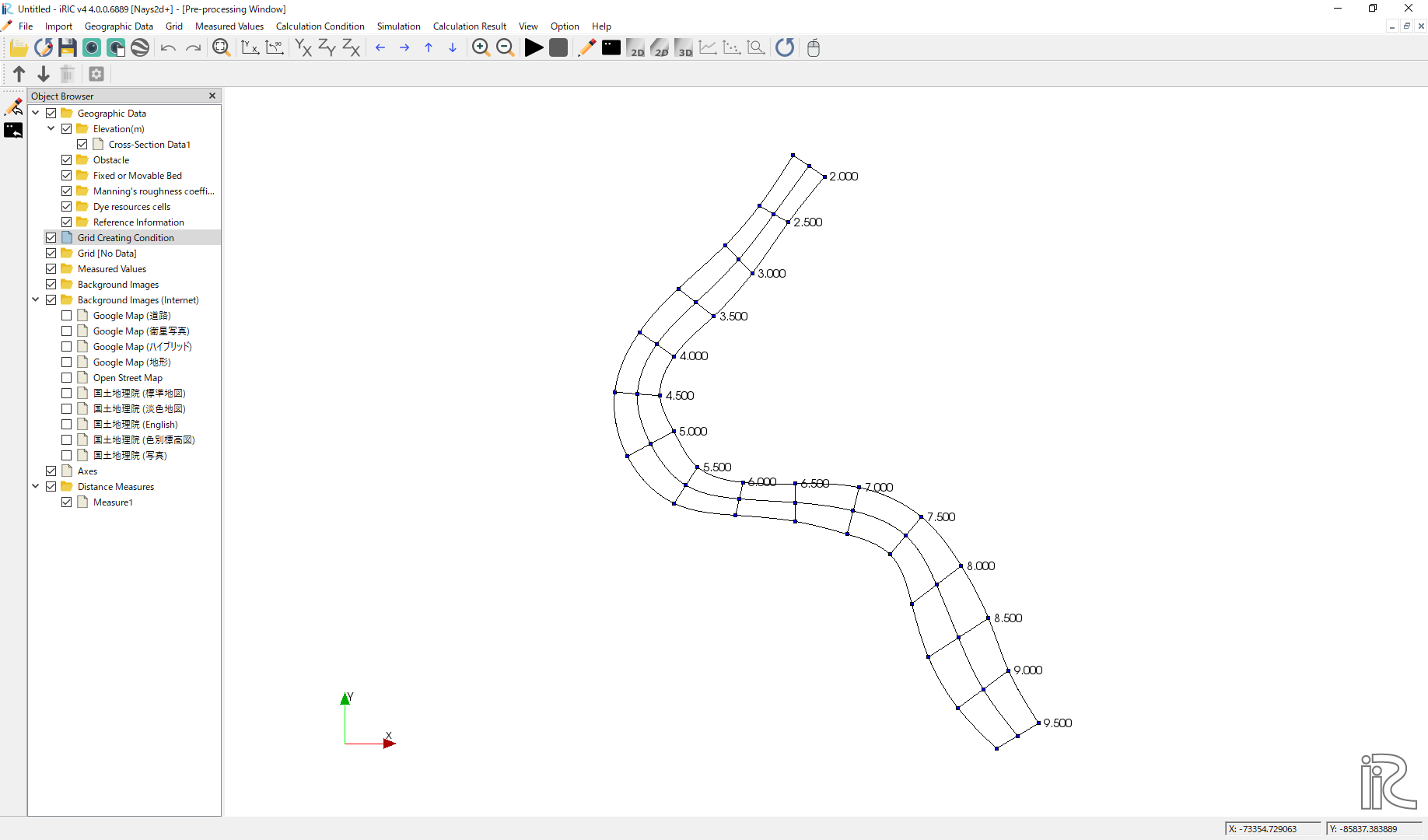

As shown in Figure 92 , a channel with cross sections with both ends’ blue circles are displayed.

../_images/koshi_9.png — Figure 92 : Setting Grid Create Condition Complete

Grid Generation

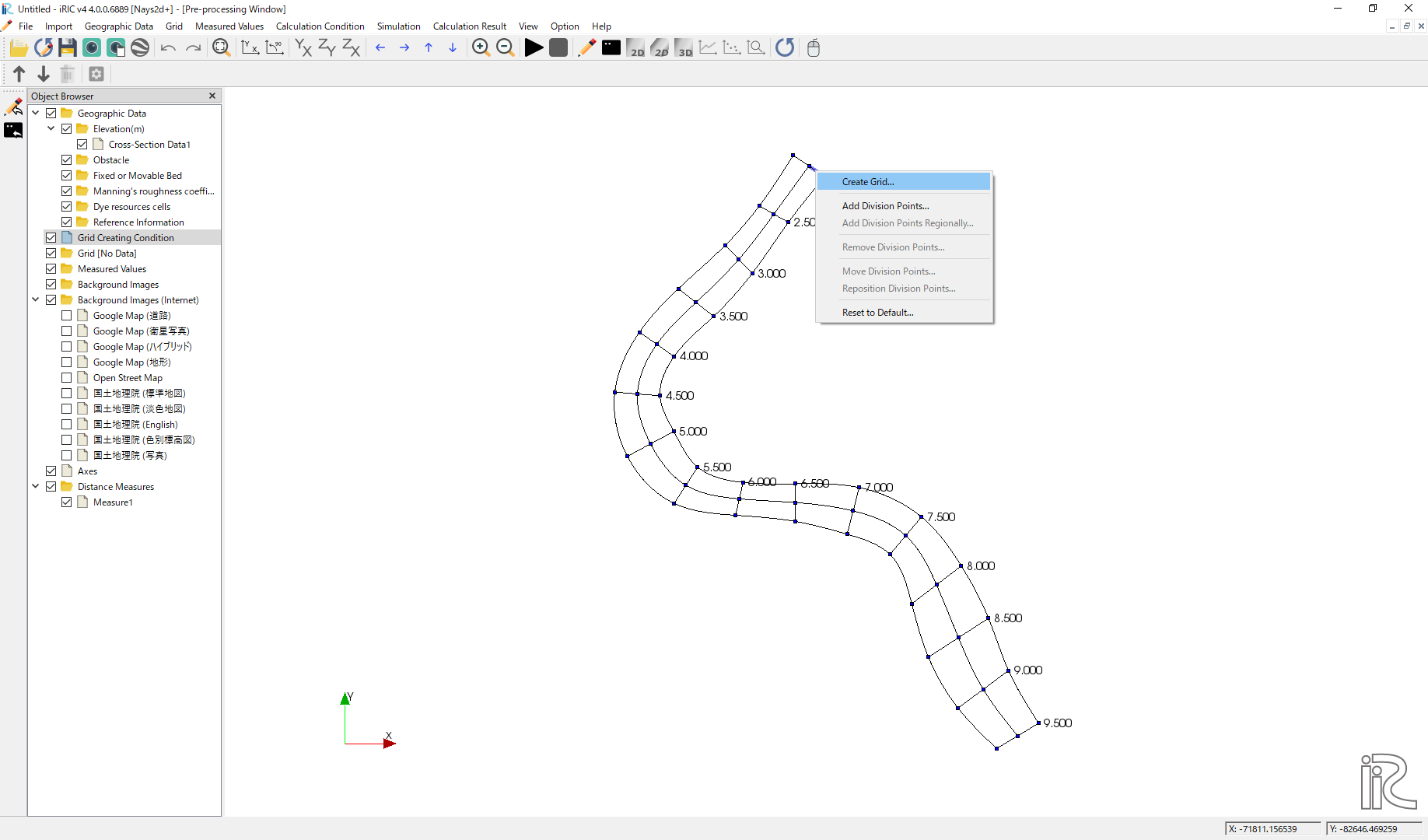

Select any side of one of the cross section line, right click, and chose [Add Division Points].

../_images/koshi_10.png — Figure 93 :Add Division Points(1)

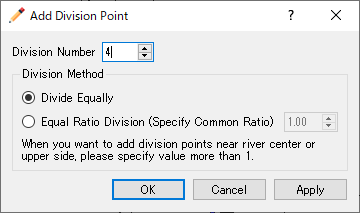

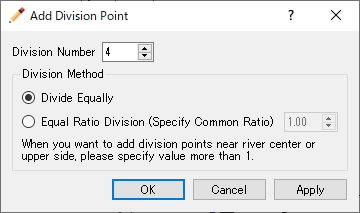

Set [Division Number], set [4] in this example, and click [OK] (Figure 94 )

../_images/koshi_111.png — Figure 94 :Add Division Points(2)

Select one of the opposite side of the cross sectional line we selected in Figure 93 , right click, and chose [Add Division Points] (Figure 95 )

../_images/koshi_12.png — Figure 95 :Add Division Points(3)

Set [Division Number], set [4] as a same number we set in Figure 94 for the symmetry.

../_images/koshi_13.png — Figure 96 :Add Division Points(4)

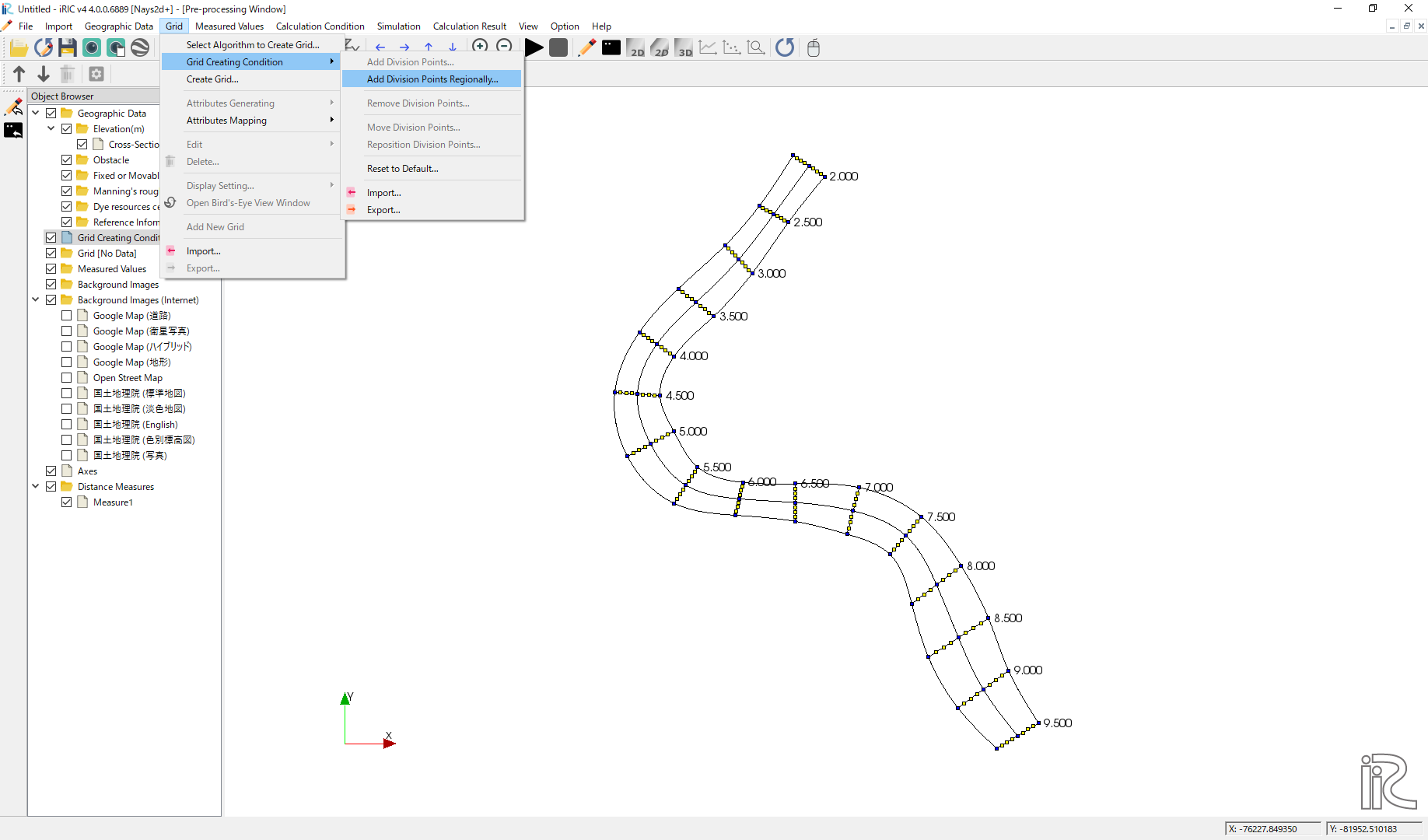

Along the channel direction, division points are set all at once. Select [Grid], [Add Division Points Regionally] from the menu bar. ( Figure 97 )

../_images/koshi_14.png — Figure 97 :Add Division Points Regionally(1)

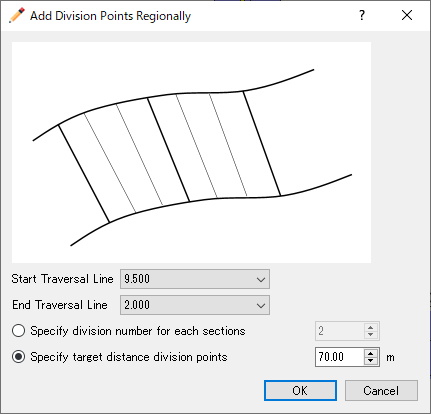

Chose [Specify target distance division points]. set distance [70] in this example, and click [OK]．( Figure 98 )

../_images/koshi_15.png — Figure 98 :Add Division Points Regionally(2)

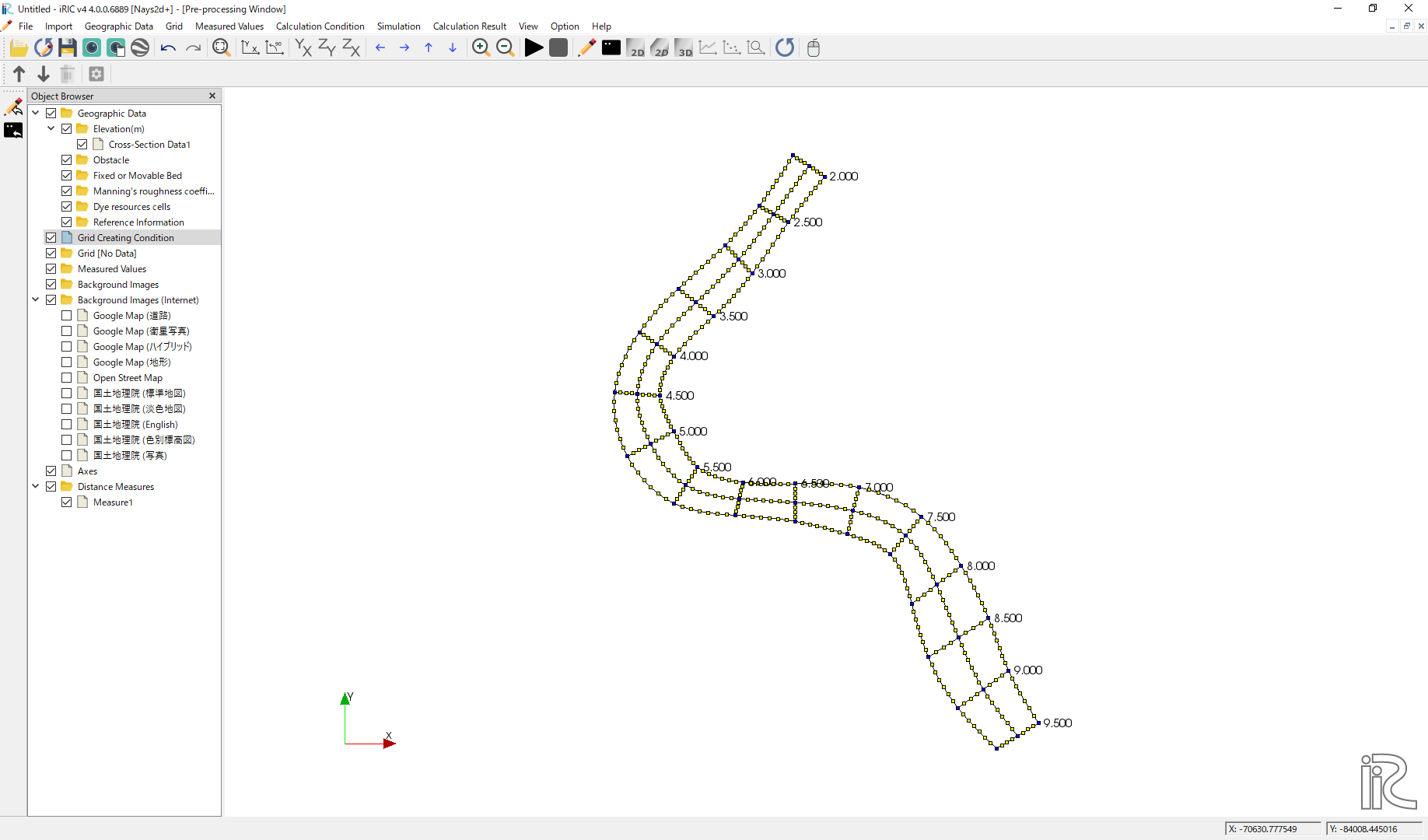

When the setup for division points are completed, a plane map with yellow circle points appears as Figure 99

../_images/koshi_16.png — Figure 99 :Set dicision points complete

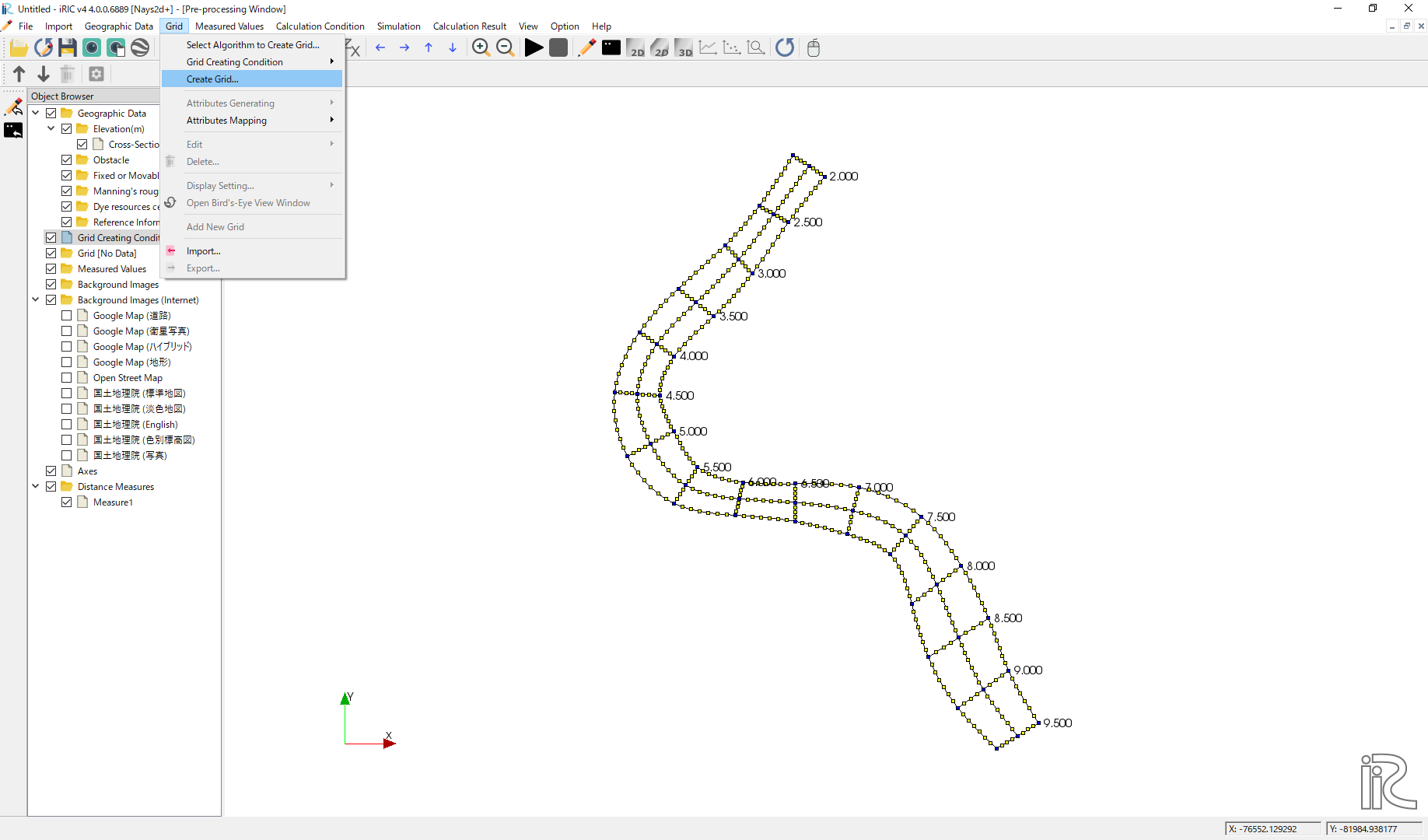

Select [Grid], [Grid Create] from the menu bar.( Figure 100 )

../_images/koshi_17.png — Figure 100 :Grid Create(1)

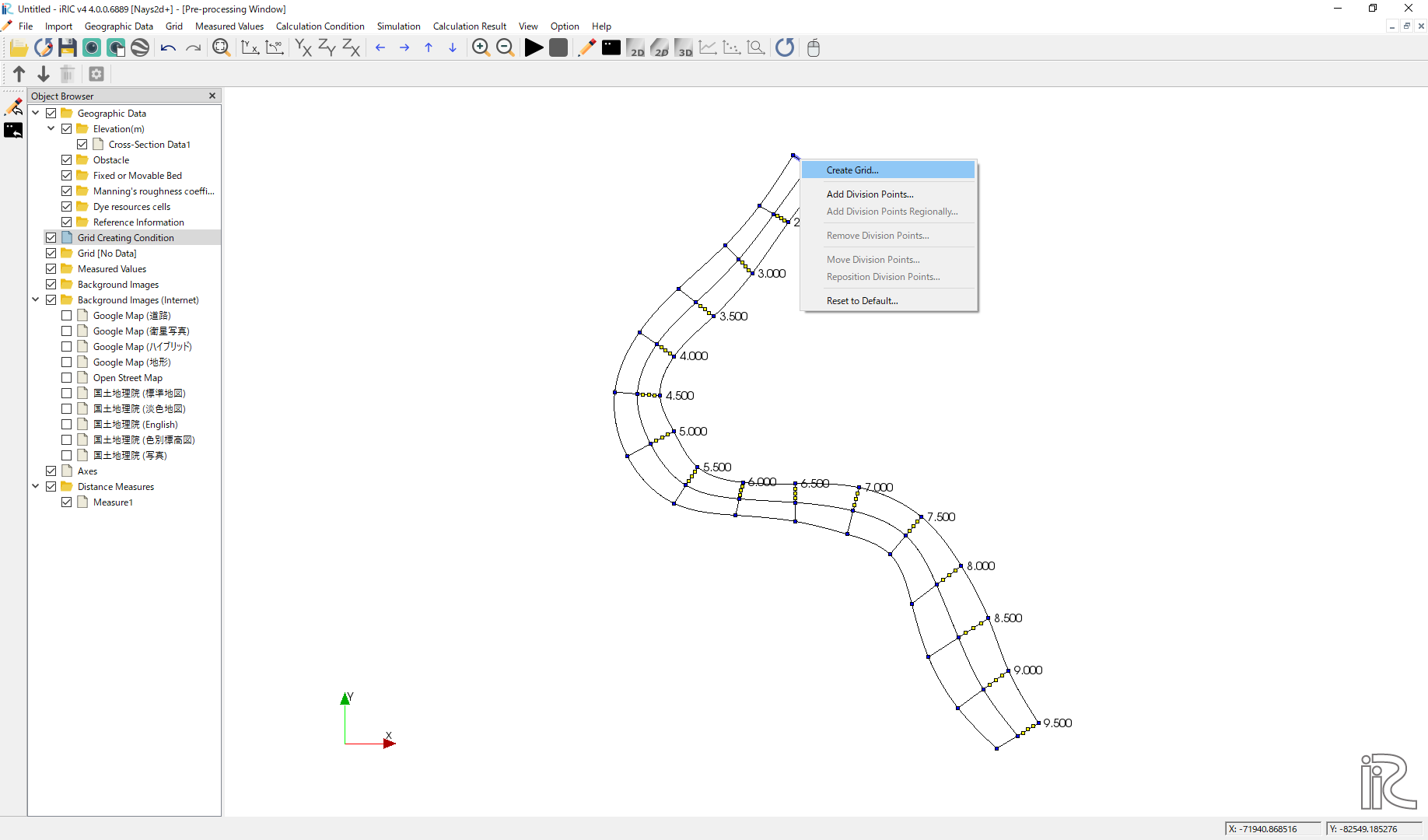

Confirm the grid generation range painted with blue, and click [OK].

../_images/koshi_18.png — Figure 101 :Grid Create(2)

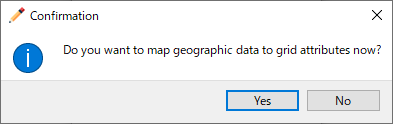

Answer [Yes] when you asked [Do you want to map?] as Figure 102

../_images/koshi_19.png — Figure 102 :Mapping?

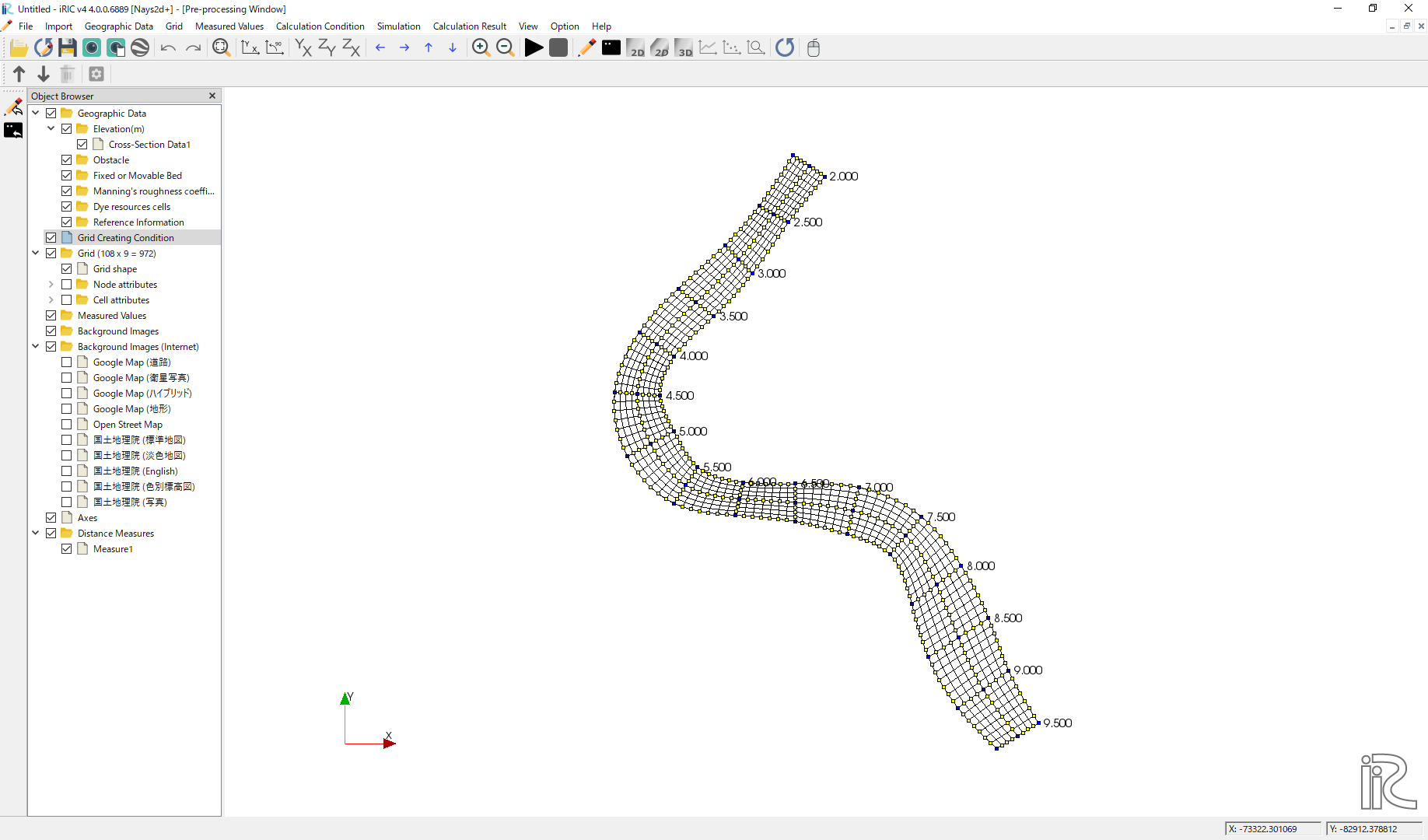

Completed grid is shown as Figure 103

../_images/koshi_20.png — Figure 103 :Grid Generation Complete

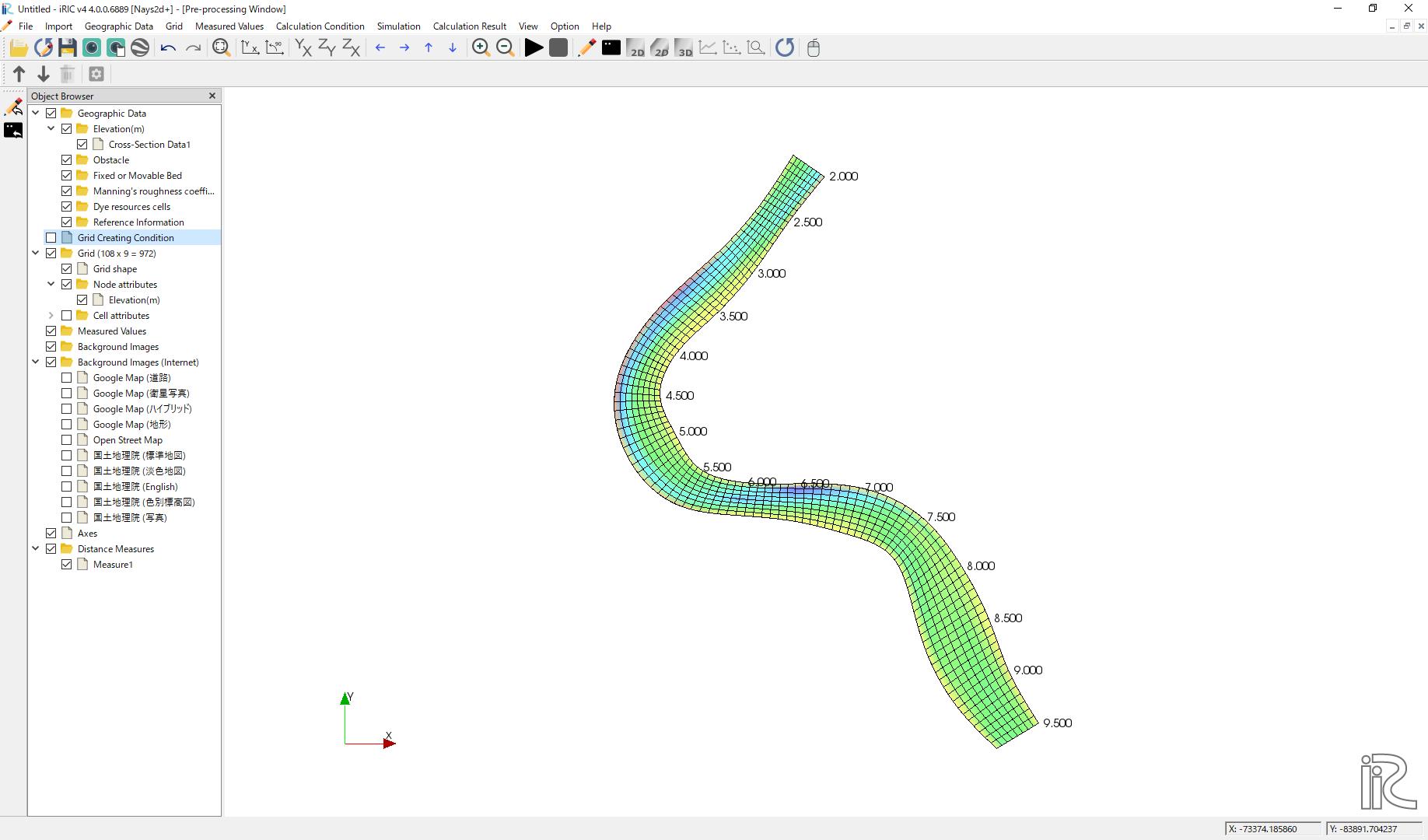

Bed configuration and channel shape can be confirmed by putting checking marks at, [Grid], [Node attributes] and [Elevation (m)]. ( Figure 104 )

../_images/koshi_211.png — Figure 104 :Confirmtion of the Mapping Result

Computational Condition

Select [Calculation Condition] and [Setting] from the min menu as Figure 105 .

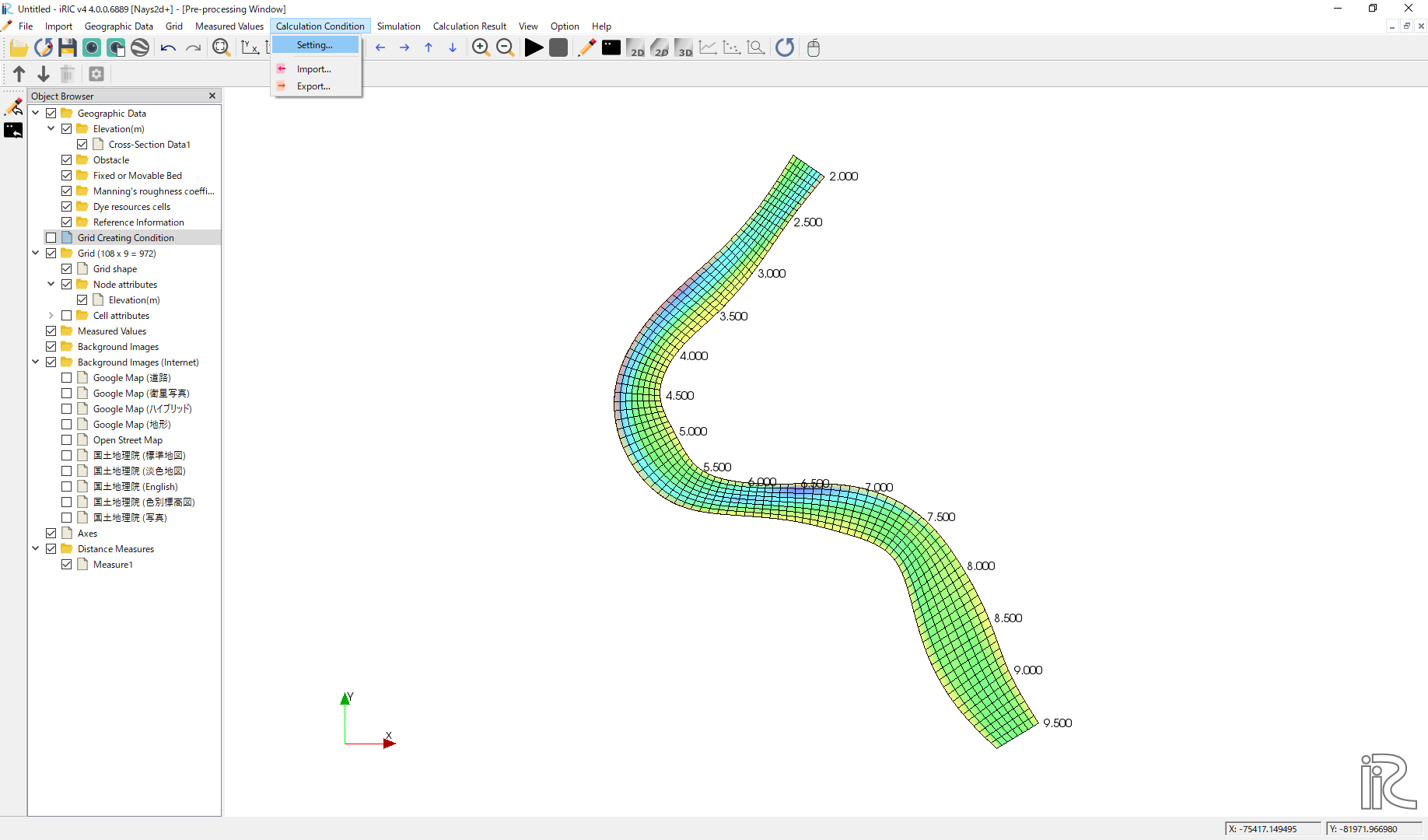

../_images/joken_01.png — Figure 105 :Setting Compitational Condition

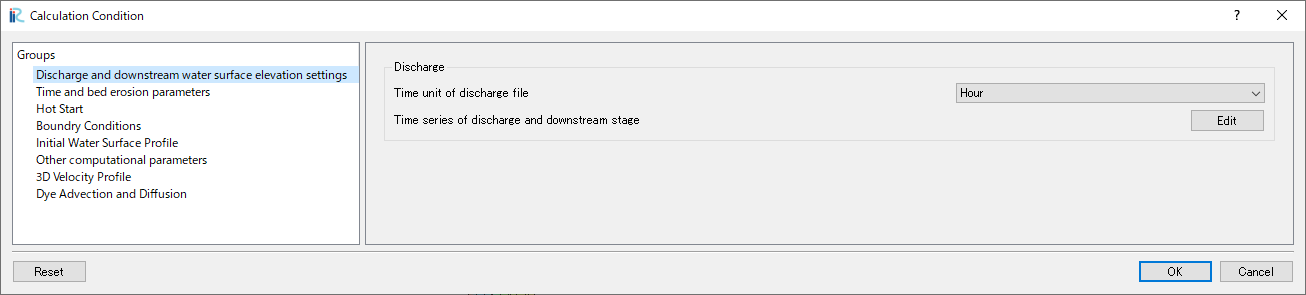

Set [Time unit of discharge] as [Hour] and click [Edit], ( Figure 106 )

../_images/joken_02.png — Figure 106 :Discharge Condition

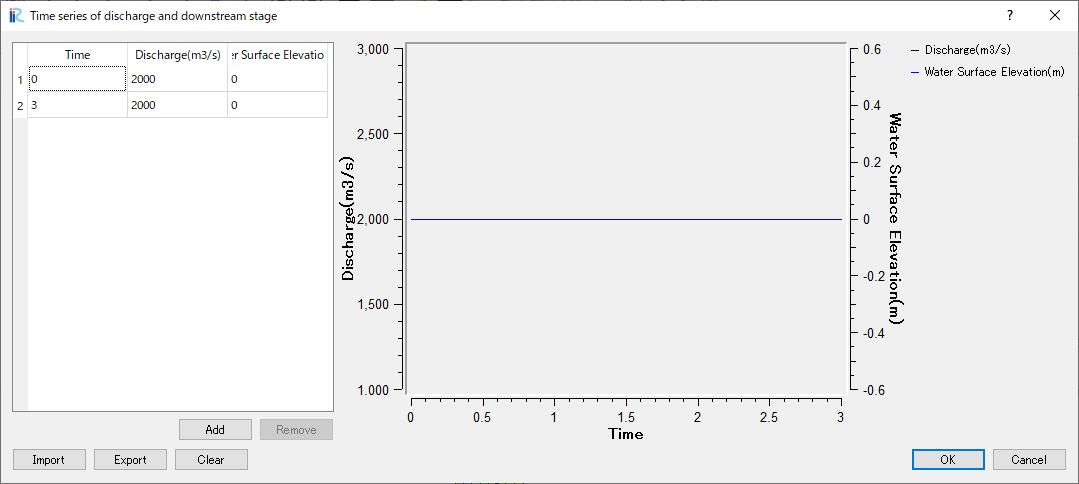

Set discharge hydrography as Figure 107, constant for 3 hours with 2,000 qms, and click [OK].

../_images/joken_03.png — Figure 107 :Input Discharge(2)

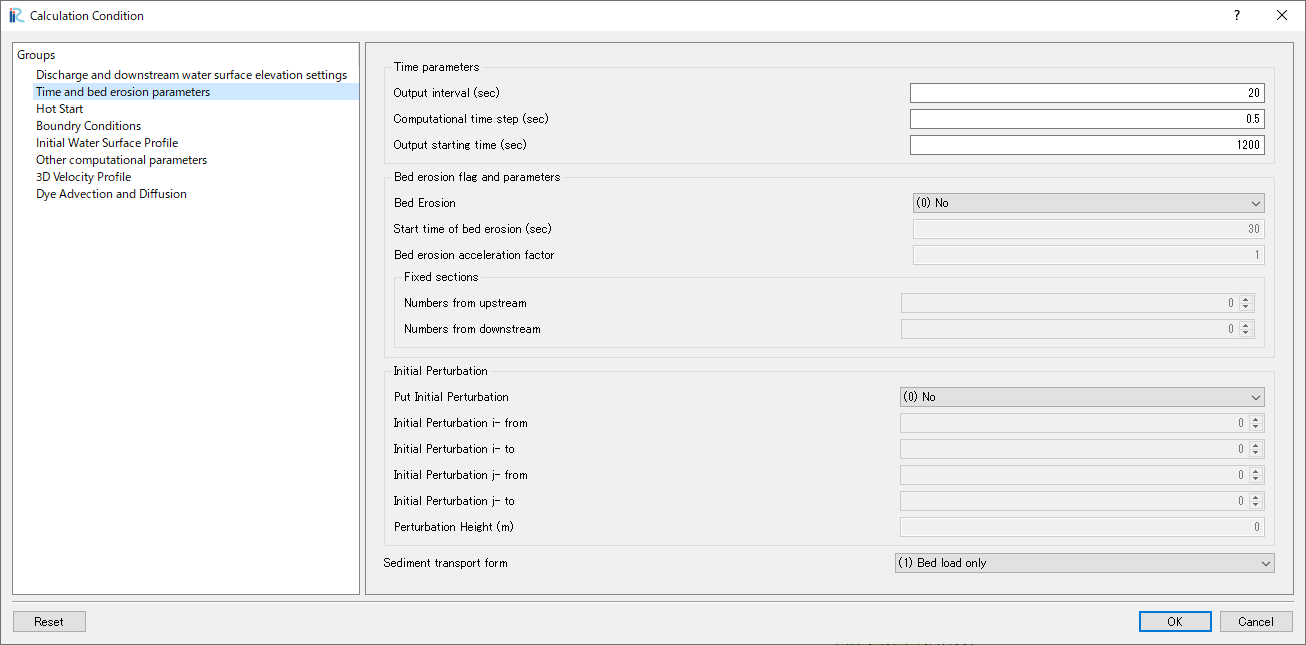

Set [Time and bed erosion condition] as Figure 108 .

../_images/joken_04.png — Figure 108 :Time and bed erosion condition

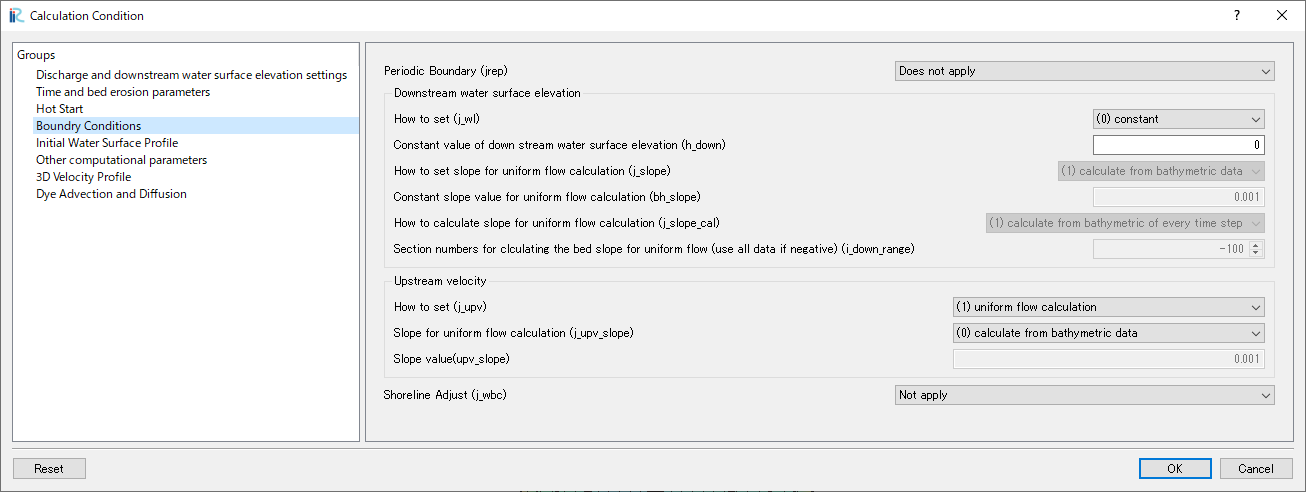

Set [Boundary Conditions] as Figure 109 .

../_images/joken_05.png — Figure 109 :Boundary Conditions

Set [Initial Water Surface Profile] as Figure 110 .

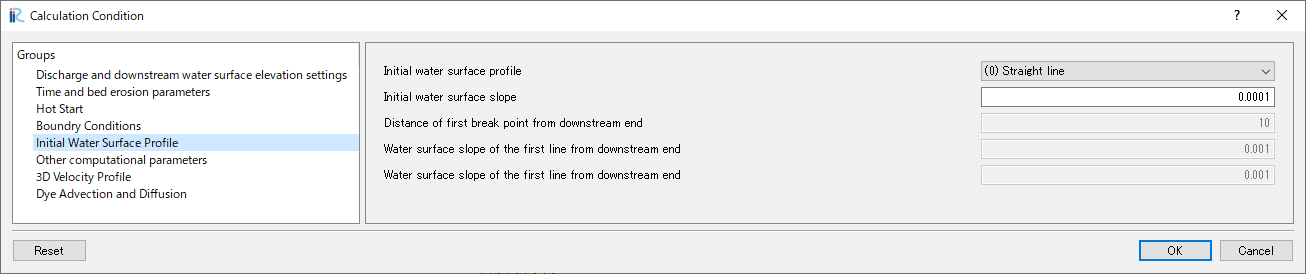

../_images/joken_06.png — Figure 110 :Initial Water Surface Profile

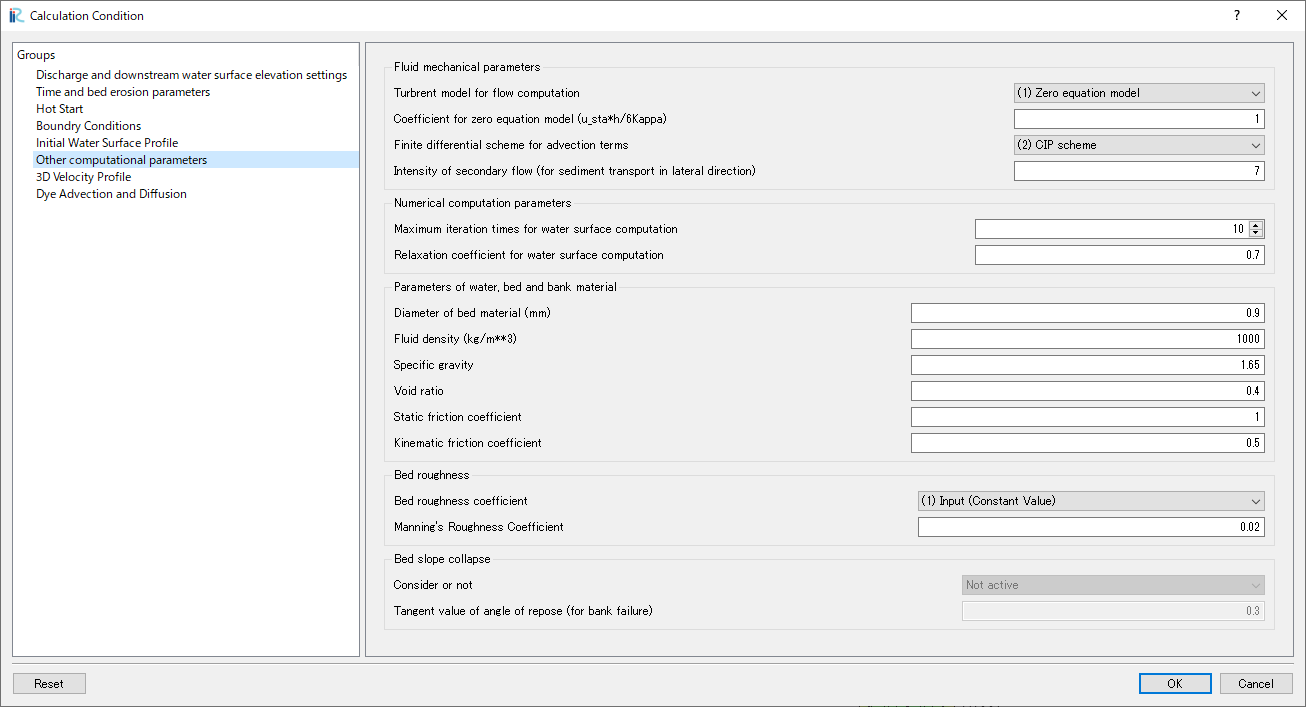

Set [Other computational parameters] as Figure 111 .

../_images/joken_07.png — Figure 111 :Other computational parameters

Set “3D Velocity Profile” as shown in the figure Figure 112 , and click [OK] to exit.

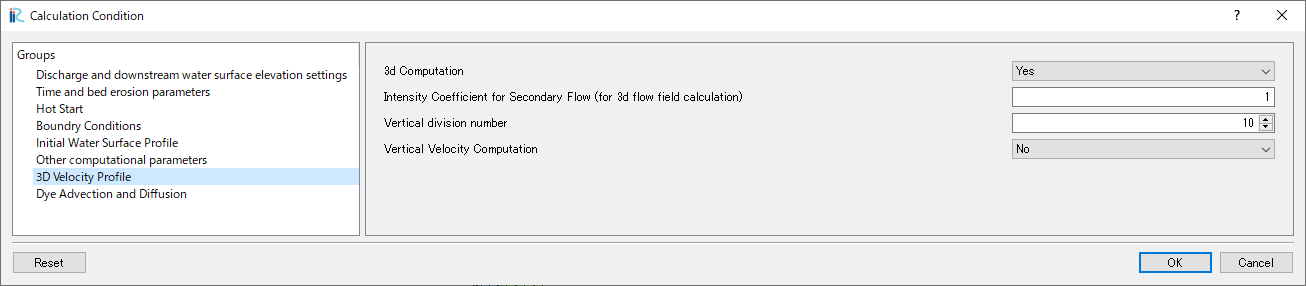

../_images/joken_08.png — Figure 112 :3D Velocity Profile Settings

Launch Computation

From the menu bar, select [Simulation] and [Run].

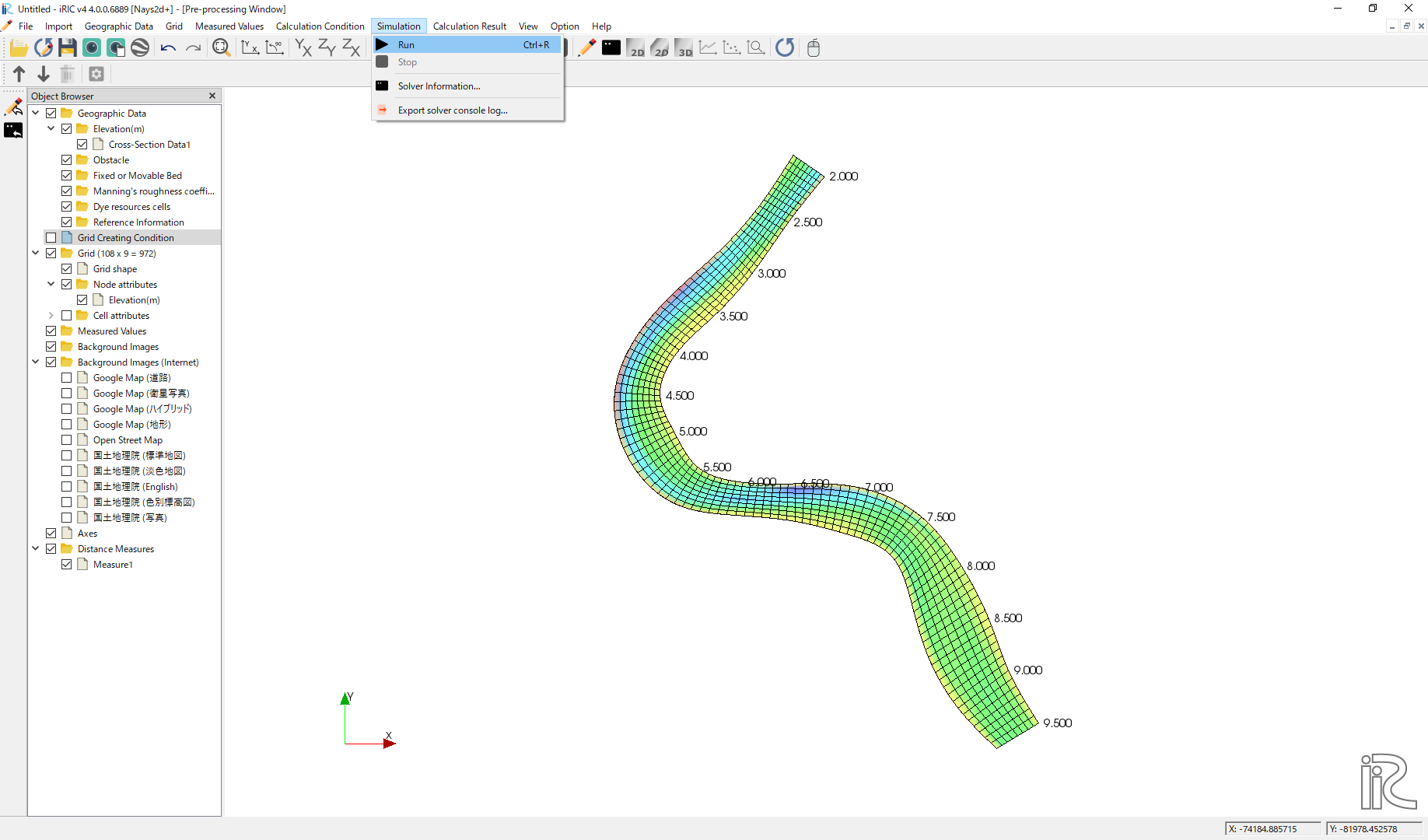

../_images/jikko_01.png — Figure 113 :Launch Simulation(1)

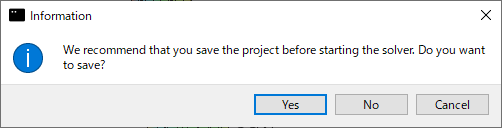

Answer [Yes(Y)] when you asked [Save the project？] as Figure 114

../_images/jikko_02.png — Figure 114 :Launch Simulation(2)

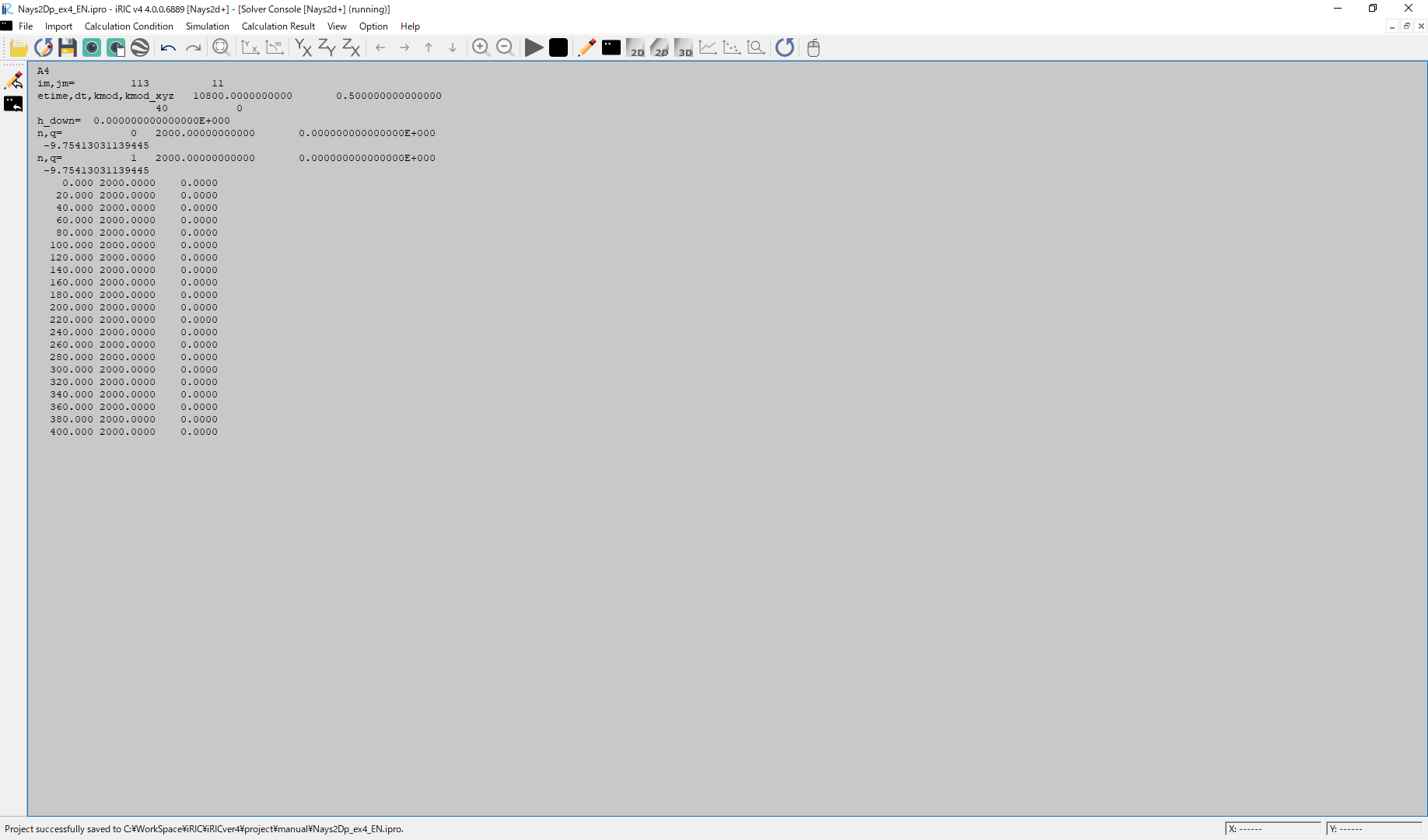

Simulation starts. Figure 115

../_images/jikko_03.png — Figure 115 :Launch Simulation(3)

Click [OK] when the message [The solver finished calculation] as Figure 116

../_images/jikko_04.png — Figure 116 :Calculation finished

Display Computational Results

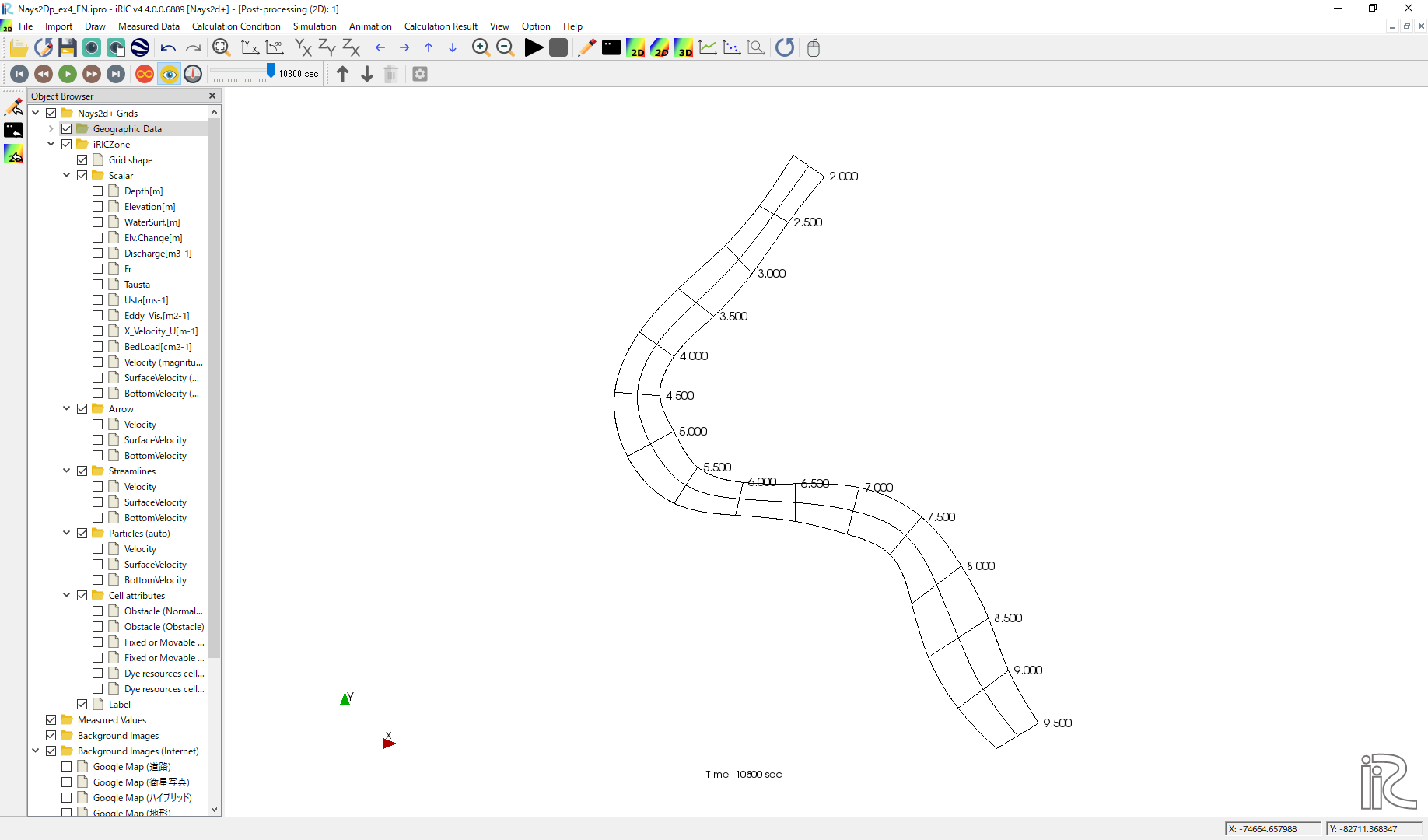

After the companion finished, form the main menu, by selecting [Calculation Results] and [Open new 2D Post-Processing Window], a new Window appears as Figure 117 .

../_images/kekka_01.png — Figure 117 :2D Post-Process Window

Depth

n the object browser, put the check marks in “Scalar (node)” and “Depth[m]”, right-click and select “Properties”. The “Scalar Setting” window Figure 118 appears.

../_images/kekka_04.png — Figure 118 :Scalar Setting

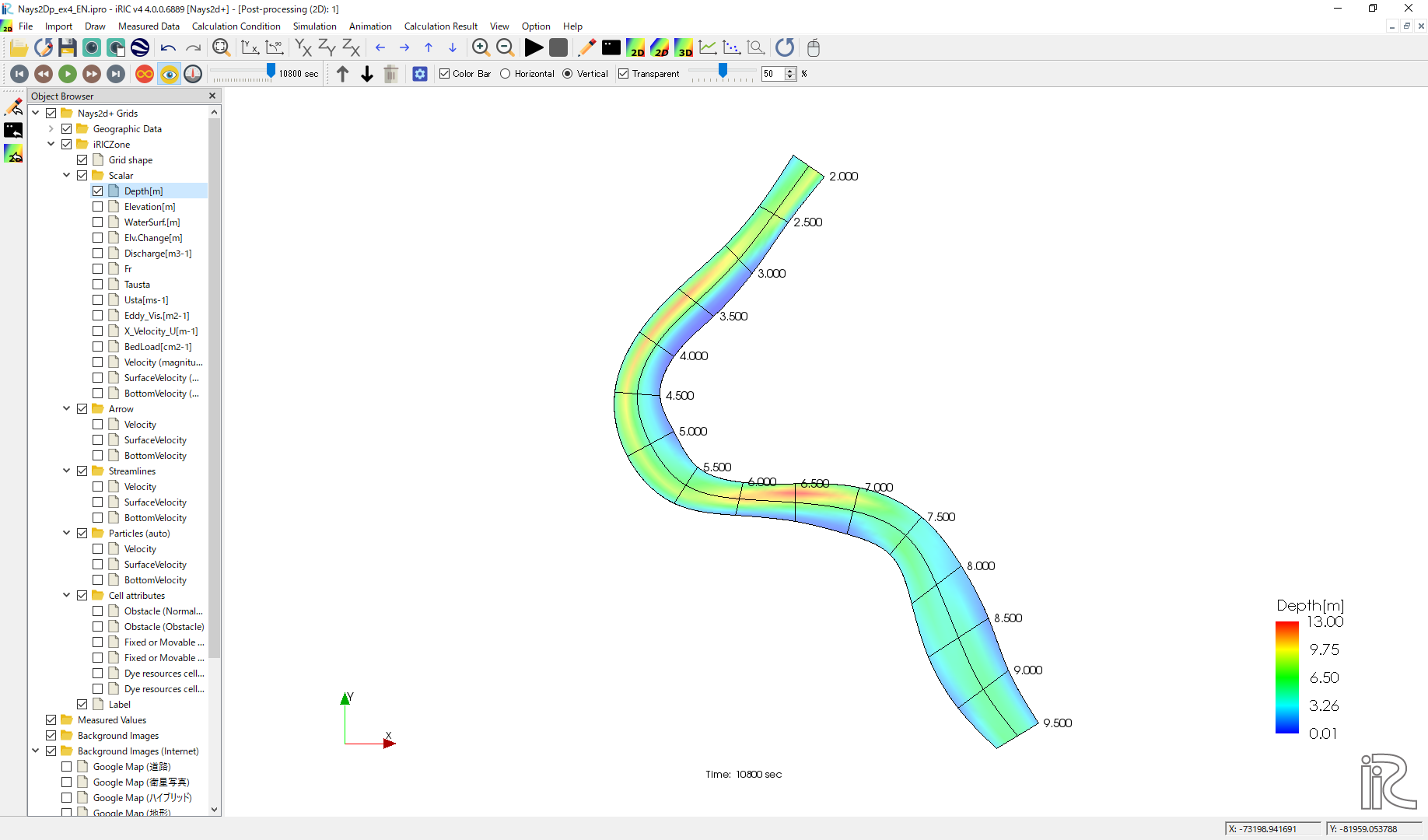

Set the values as shown in Figure 118, and click [OK], then Figure 119 appears.

../_images/kekka_05.png — Figure 119 : Depth Plot

Display Background Image

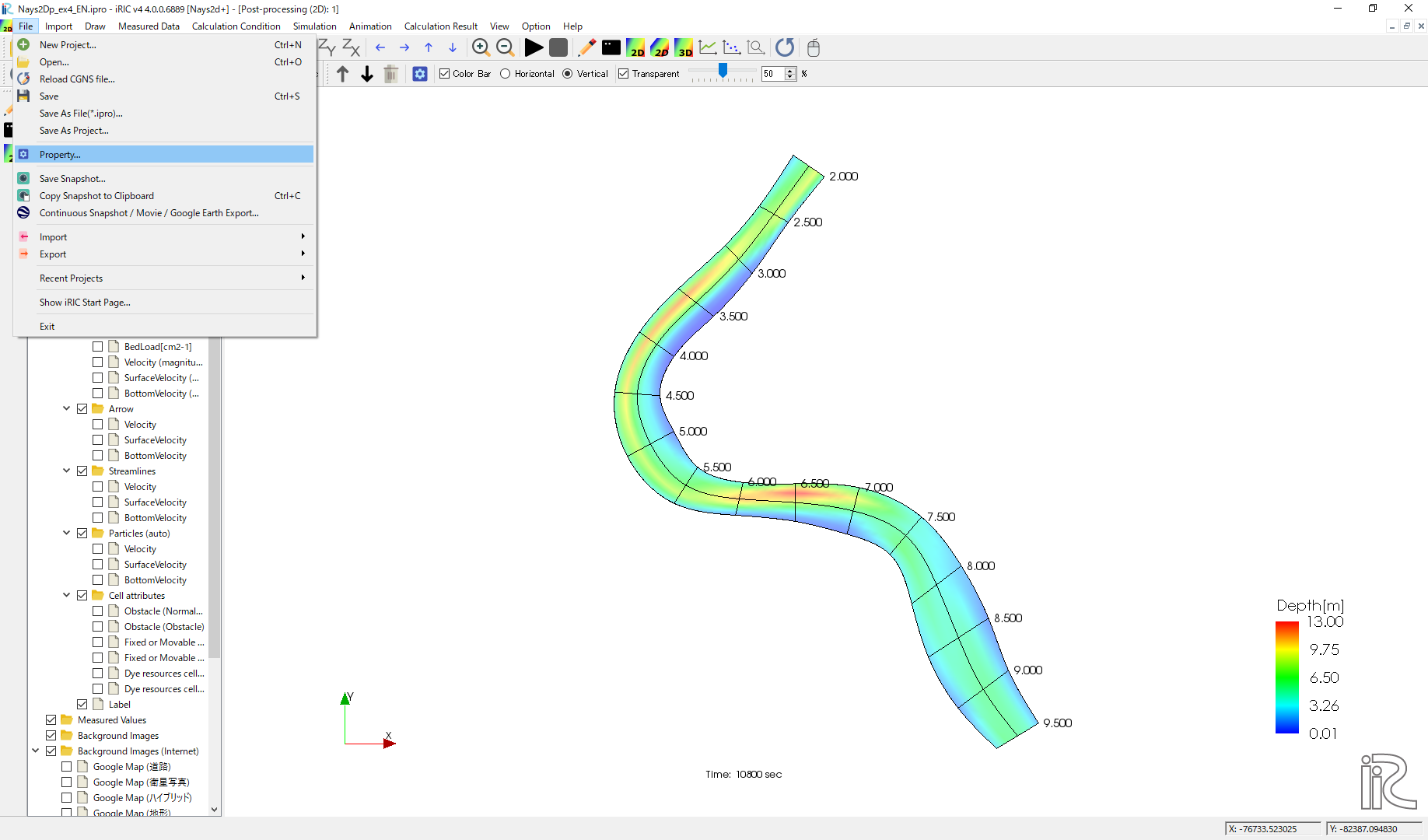

Select from the main menu, [File]->[Property] ( Figure 120 )

../_images/haikei_01.png — Figure 120 :Select Property

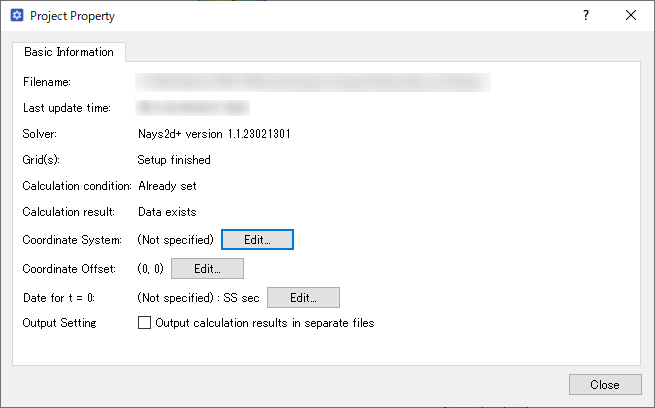

From the “Project Property” window, click [Edit] at [Coordinate System] .. _04_haikei_02:

../_images/haikei_02.png — Figure 121 :Edit Coordinate System Setting

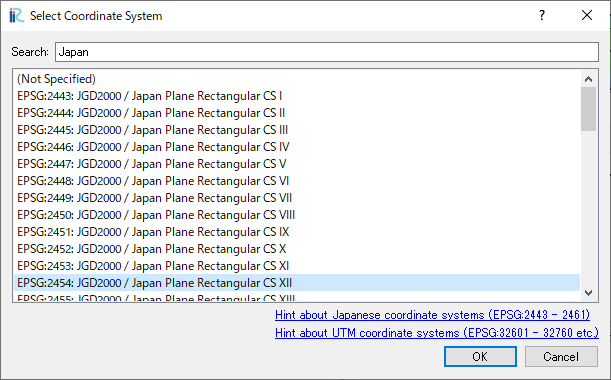

Input “Japan” in the [Search] window, and chose the one with “XII” from the items with [EPSG:….] as Figure 122 . See more detail on coordinate system of Japan at http://www.gsi.go.jp/sokuchikijun/jpc.html

../_images/haikei_03.png — Figure 122 :Select Coordinate System

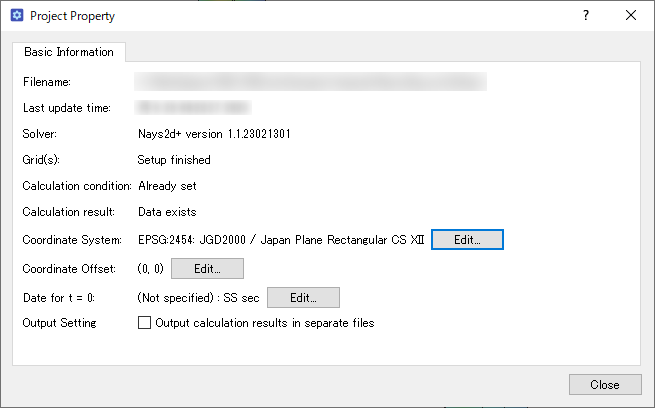

Click [Close] of [Project Property] window of Figure 123

../_images/haikei_04.png — Figure 123 :Close Property Window

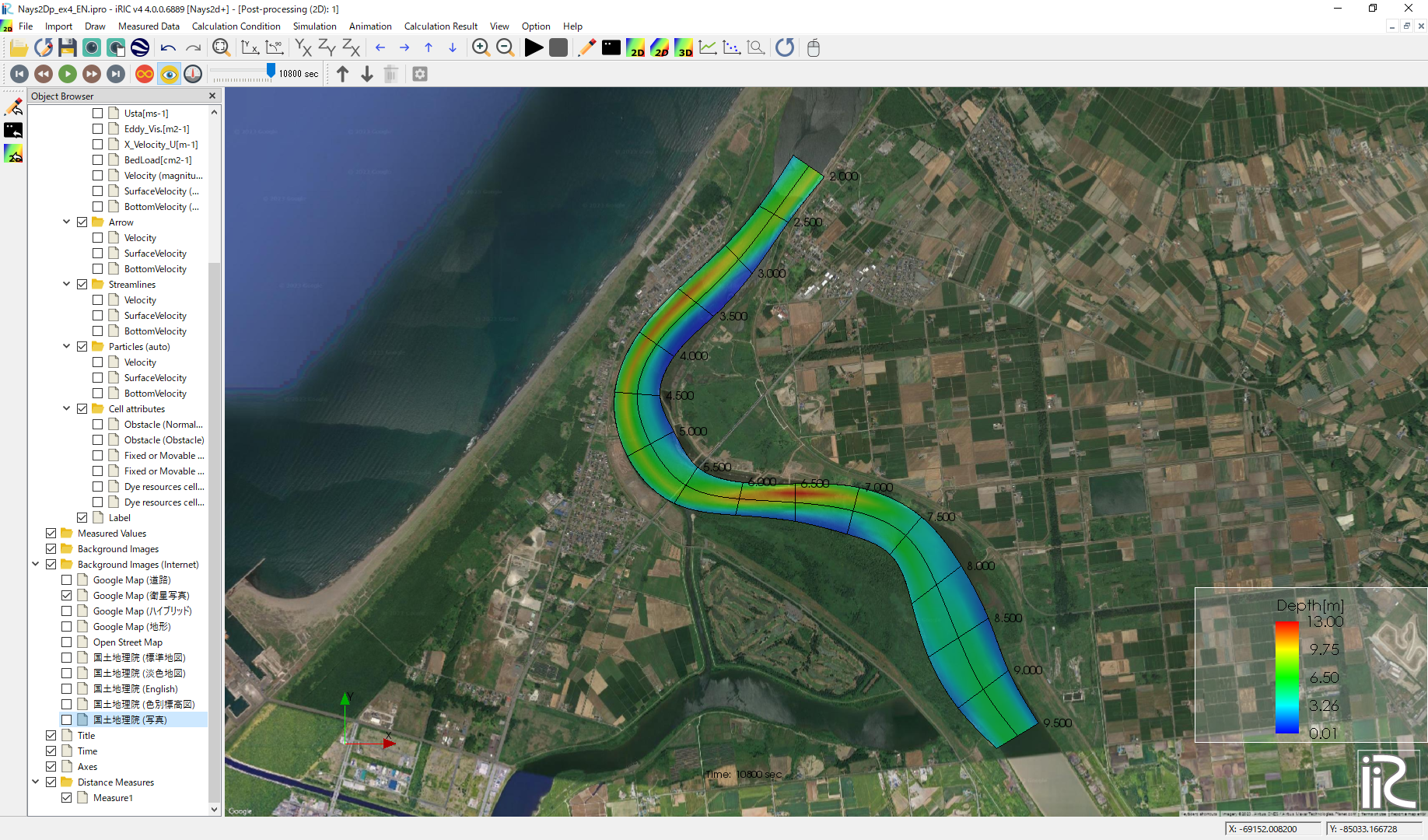

Put a check mark in a box in front of [Background Images(Internet)] and one of the items listed below, e.g., [Google Map (Sattelite Image)] as Figure 124

../_images/haikei_05.png — Figure 124 :Background Image Import Complete

Velocity Vectors and Streamlines

Since the operation method is the same as the previous section, it will be omitted.

Particle Animations

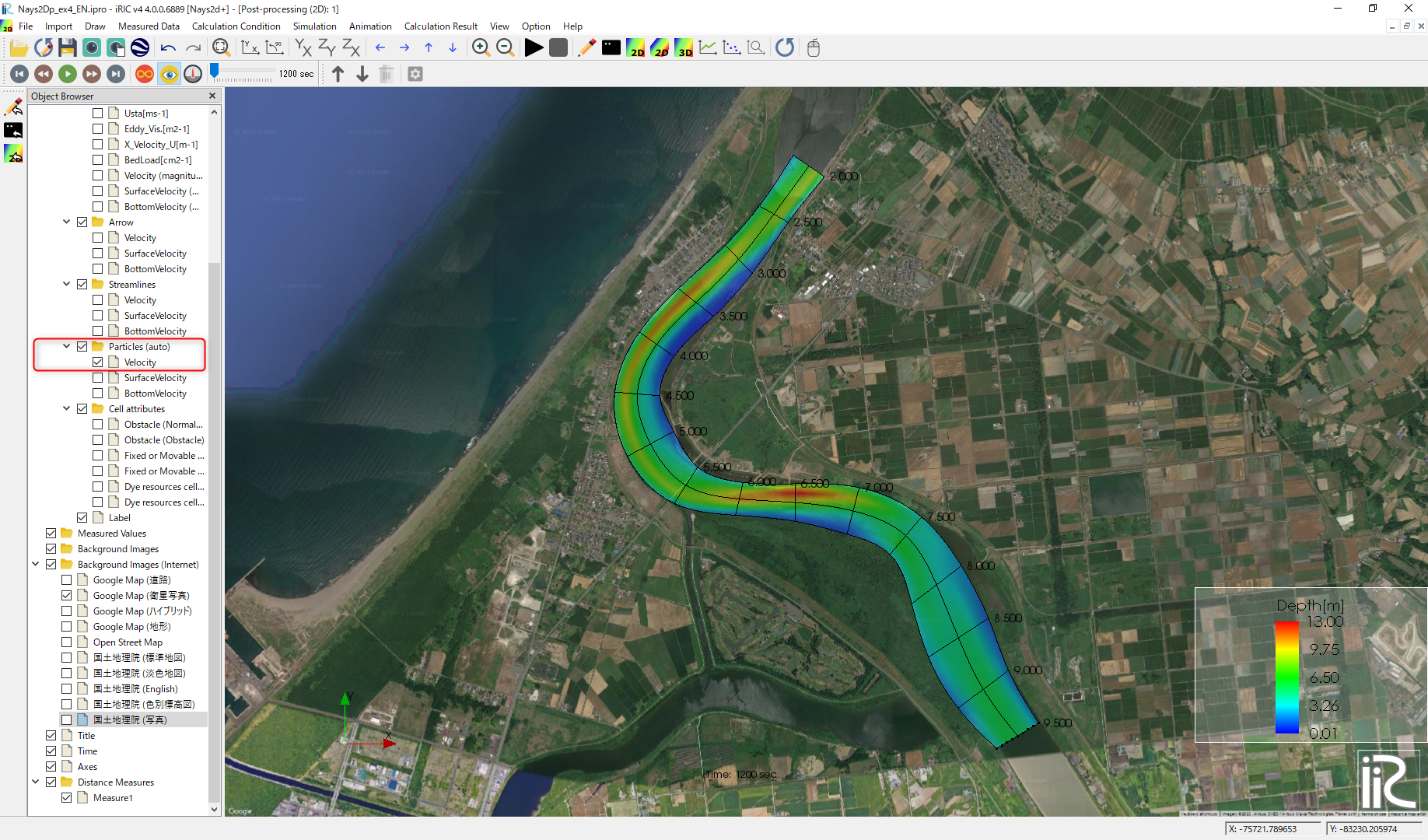

Put check mark at [Particles] and [Velocity] in the object browser, put time bar back to zero, and push black button, ( Figure 125 ). Particle following the depth averaged velocity starts as Figure 126 ．

../_images/particle_01.png — Figure 125 :Particle Animation

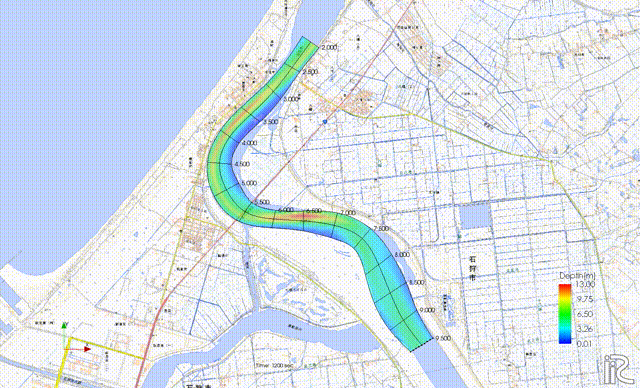

../_images/particle_02.gif — Figure 126 :Particle movement by depth averaged velocity

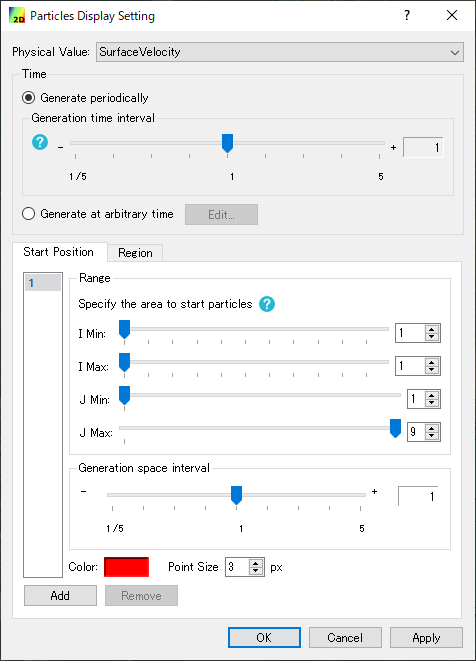

Make the Particles riding the surface velocity are displayed in red. Put ☑ in “Particle” and “SurfaceVelocity”, right-click on “Particle” and select “Properties” to display “Particle setting screen” Figure 127, so set it as shown in the figure and Click [OK]. Reset the time bar to zero and press the play button to display the particle animation caused by the surface flow of Figure 128.

../_images/particle_03.png — Figure 127 :Particle Setting

../_images/particle_04.gif — Figure 128 :Particle movement by surface velocity

In the same way, the particle flowing animations can be played by checking a box at [Bottom Velocity], respectively.

../_images/particle_05.gif — Figure 129 :Particle movement by bottom velocity
